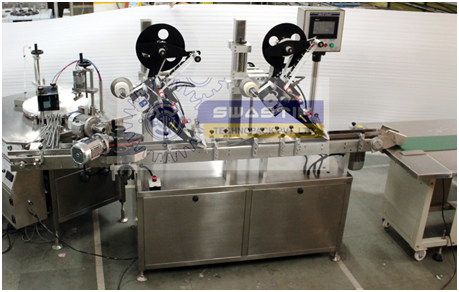

Auto Double Side Horizontal Labelling Machine With Flip Over System

Machine Applications

  • Horizontal Labelling
  • Pocket Spray Perfume Labelling
  • Perfume Box Labelling
  • Jar Cap Labelling
  • Flat Surface Labelling

Machine Specification

Technical Specifications
SHL3200
Salient Features
Power Required
230 V/ 1 Ph/ 1.5 kW
Easy to operate and maintain
Air Required
NA
Product flip over smooth mechanism
Production Capacity
50 - 100 Labels Per Min.
Easy to configure settings
Approx. Dim. (LxWxH Mtrs.)
2.5 x 1.0 x 1.5
Accuracy Of Labeling +/- 2 mm
Approx. Weight (Kgs)
650
Variable speed for all motors
Manpower Required
NA
Product separator provided
Make Of Electrical Components
Bonfiglioli/Motovario/Panasonic
Stepper motors for label dispenser
Make Of Pneumatic Components
NA
Price
Make Of Electronic Components
Lueze/Sanyo/Delta
Contact Us
Make Of Valves & Fittings
NA
Add Ons (For Pricing Contact Us)
Contact Parts MOC
SS 304
Spare Kit (Recommended Add On)
Non Contact Parts MOC
SS 304
Upgrade To Servo Motors For Accuracy
No. Of Labeling Heads
2
Upgrade To PLC + HMI Touchscreen
Product Settings Storage
Upto 100
Product Change Over Kit (Samples Req.)
Min-Max. Product Width Accepted
20 mm - 100 mm
--
Min-Max. Product Length Accepted
25 mm - 150 mm
--
