Welcome Swastik Technopack

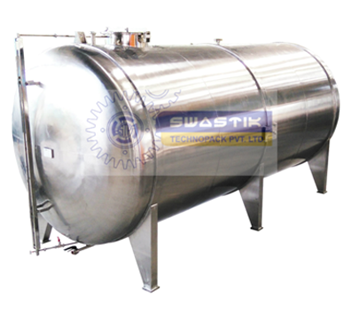

Swastik Horizontal Alcohol Storage Vessel 30,000 Ltrs

Machine Applications

  • Storage Of Alcohol
  • Storage Of Low Viscosity Liquids
  • Storage Of Medium Viscosity Liquids
  • Storage Of Water

Machine Specification

Technical Specifications
--
Salient Features
Power Required
NA
Level Indicator With Sample Valve
Air Required
NA
Additional Drain Outlet Pre Fitted
Approx. Dim. (LxWxH Mtrs.)
6.7 x 2.6 x 3.1
Nozzles For Nitrogen Blanketing Pre Fitted
Approx. Weight (Kgs)
5000
Capsule Type Design
Make Of Electrical Components
NA
Scale With Centimeter Markings Pre Fitted
Make Of Pneumatic Components
NA
Big Manhole For Easy Access
Make Of Electronic Components
NA
Stiffeners On Shell For Added Strength
Make Of Valves & Fittings
Cipriani/Inoxpa
Price
Contact Parts MOC
SS 304L
Contact Us
Non Contact Parts MOC
SS 304
Add Ons (For Pricing Contact Us)
Net Volume Approx. (Ltrs)
30,200
Spare Kit (Recommended Add On)
Gross Volume Approx. (Ltrs)
31,500
Upgrade All Contact Parts To SS 316
Both End Dish Thickness Approx. (mm)
6
--
Shell Thickness Approx. (mm)
5
--
Inlet & Outlet Connection Size (Inch)
2 / 2
--
Inside / Outside Finish
Mirror / Matt
--



Alcohol storage container manufacturers in Mumbai, India to all around the world. Alcohol storage containers in flexible price as per ISO standards and certified international specifications from 1984 with required features and characteristics to offer the functional expectation without giving heavy costs and handling labour.
